How to configure KeyCloak to support Redash SAML SSO?

10/10/2023 @ Saigon Redash

I. KeyCloak Configuration

Step 1: Create a new realm

First of all, let start with definition of reaml, it’s what I got from KeyCloak official website.

Realms A realm manages a set of users, credentials, roles, and groups. A user belongs to and logs into a realm. Realms are isolated from one another and can only manage and authenticate the users that they control.

Realms (Tiếng Việt): cõi, địa hạt, vương quốc, vùng Một realm quản lý một tập hợp user, thông tin xác thực - credential, role và group. Một user sẽ thuộc một realm, một realm sẽ có nhiều user, user sẽ đăng nhập vào reaml mà nó thuộc về. Một server KeyCloak tạo được rất nhiều realm, và chúng bị cô lập với nhau. Những realm này chỉ có thể quản lý và cho đăng nhập những user mà chúng quản lý.

As the definition of realm , this step is only used for testing only, normaly, if your KeyCloak did create a realm, you can skip this step and go to step 2.

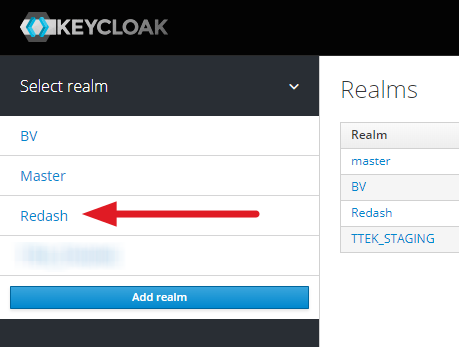

[1] Add a new realm.
[1] Add a new realm.

Step 2: Create new reaml’s client & configure it

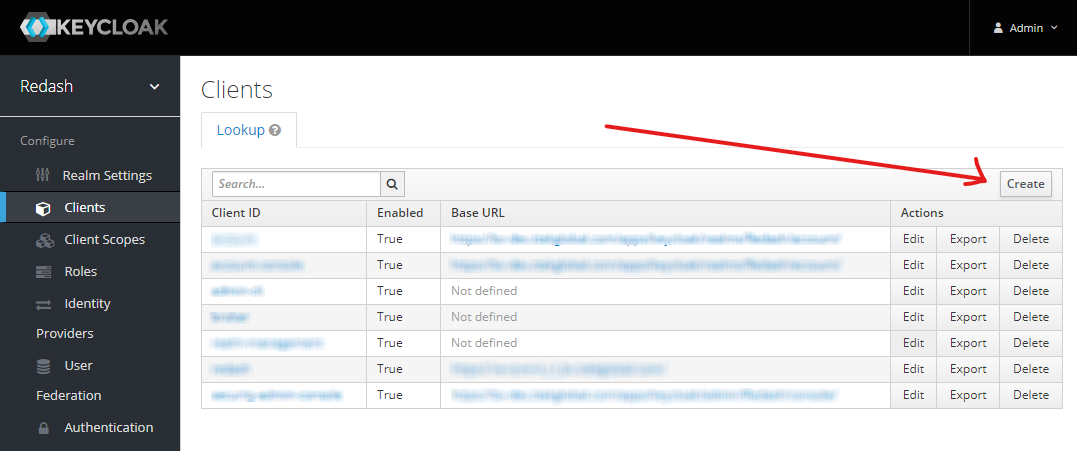

[2] Create realm's client
[2] Create realm's client

In new client form, I would like to input the following parameters, then submit.

  • Client ID: redash
  • Client Protocol: saml
  • Client SAML Endpoint: ignored this field.

After that, edit that new client named redash

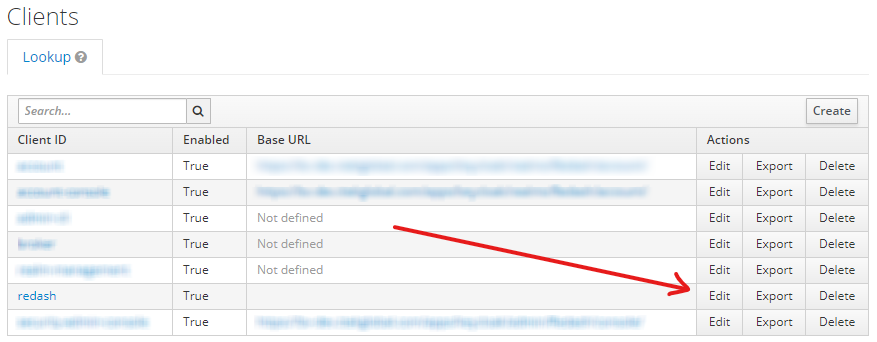

[3] Edit Redash client
[3] Edit Redash client

Client ID: redash

  • Name: Redash
  • Description: empty
  • Enabled: on
  • Always Display in Console: off
  • Consent Required: off
  • Login Theme: keycloak
  • Client Protocol: saml
  • Include AuthnStatement: on
  • Include OneTimeUse Condition: off
  • Force Artifact Binding: off
  • Sign Documents: off
  • Sign Assertions: on
  • Signature Algorithm: RSA_SHA256
  • SAML Signature Key Name: KEY_ID
  • Canonicalization Method: EXCLUSIVE_WITH_COMMENTS
  • Encrypt Assertions: off
  • Client Signature Required: off
  • Force POST Binding: off
  • Front Channel Logout: off
  • Force Name ID Format: off
  • Allow ECP Flow: off
  • Name ID Format: email
  • Root URL: ignored
  • Valid Redirect URIs: https://redash.local-domain.com/*
  • Base URL: https://redash.local-domain.com/
  • Master SAML Processing URL: https://redash.local-domain.com/saml/callback?org_slug=default
  • IDP Initiated SSO URL Name: ignored
  • Logo URL: ignored
  • Policy URL: ignored
  • Terms of service URL: ignored
  • IDP Initiated SSO Relay State: ignored

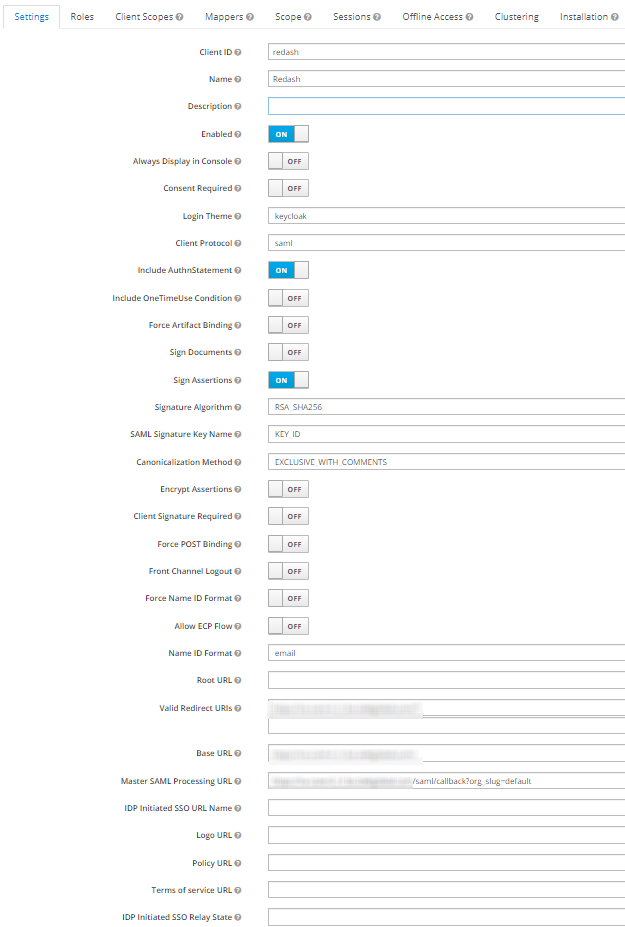

[4] Client settings
[4] Client settings

Step 3: Configure client’s mappers

In the saml response that Redash expected to received, it requires

  • First Name (original), this attibute name is FirstName
  • Last Name (original), this attribute name is LastName

However, in the KeyCloak, the attribute names are different from what Redash expected, as a consequence, we need to configure client’s mappers For first name and last name, use Add Builtin feature.

[5] First name and last name mappers
[5] First name and last name mappers

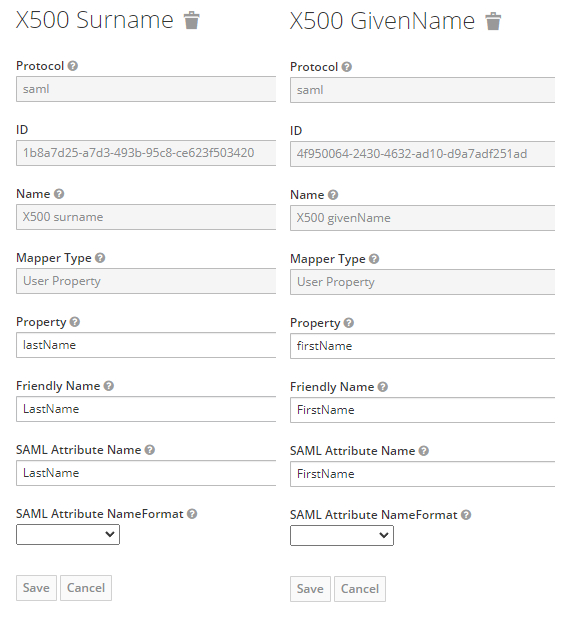

[6] First name and last name mapper detail
[6] First name and last name mapper detail
  • X500 Surname
    • Property: lastName
    • Friendly Name: LastName
    • SAML Attribute Name: LastName
  • X500 GivenName
    • Property: firstName
    • Friendly Name: FirstName
    • SAML Attribute Name: FirstName

II. Redash SAML Configuration

After login using admin credential, go to Settings → General → Saml

  • SAML Enabled: Enable (Dynamic)
  • SAML Metadata URL: https://keyclock.local-domain.com/apps/keycloak/realms/{REALM_NAME}/protocol/saml/descriptor
  • SAML Entity ID: redash
  • SAML NameID Format: urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress

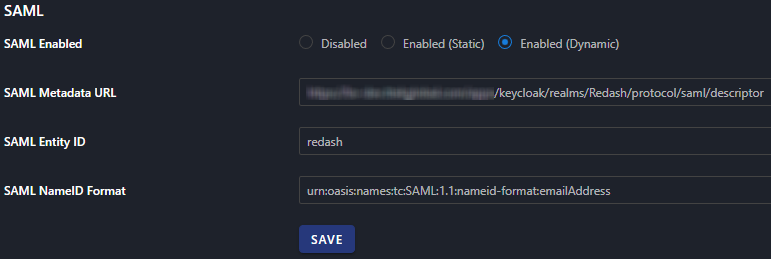

[7] Redash’s SAML configuration
[7] Redash’s SAML configuration

You are done! Enjoy!
