K1 max & Nozzle 0.6mm
16/11/2024
@ Saigon
3D Print
This profile is tested with Creality Ender PLA filament. I only note which is the most important settings.
- Nozzle:
0.6mm - Maximum volumetric speed:
30mm3/s - Layer height:
0.3mm - Nozzle temperature:
220C - Flow ratio:
1 - Pressure Advance:
0.02 - First layer:
- outer wall speed:
50m/s - first infill speed:
105mm/s
- outer wall speed:
- Other layer:
- outer speed:
105mm/s - inner speed:
125mm/s - Top surface speed:
105mm/s
- outer speed:

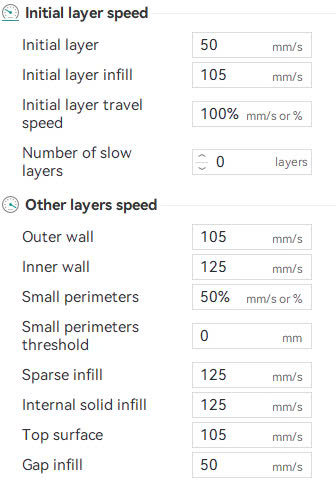

![[1] Speed settings](/image/posts/2024-11-16-K1-max-Nozzle-0.6mm/1.jpg)
- Retraction
- Length:
0.5mm - Z hop when retract:
0.2mm - Z hop type:
spiral - Retraction speed:
40mm/s
- Length:

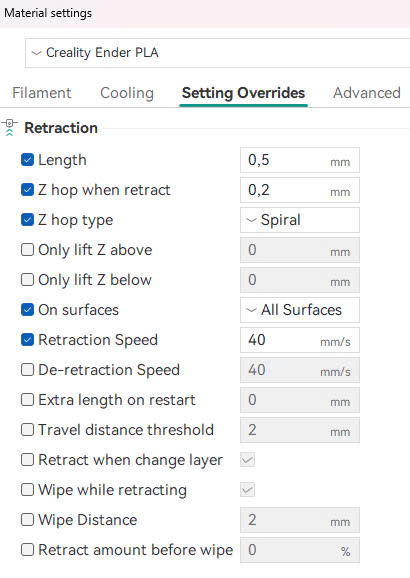

![[2] Retraction settings](/image/posts/2024-11-16-K1-max-Nozzle-0.6mm/2.jpg)
